LAMINATING LINE
EPS insulation products for floor heating panels.

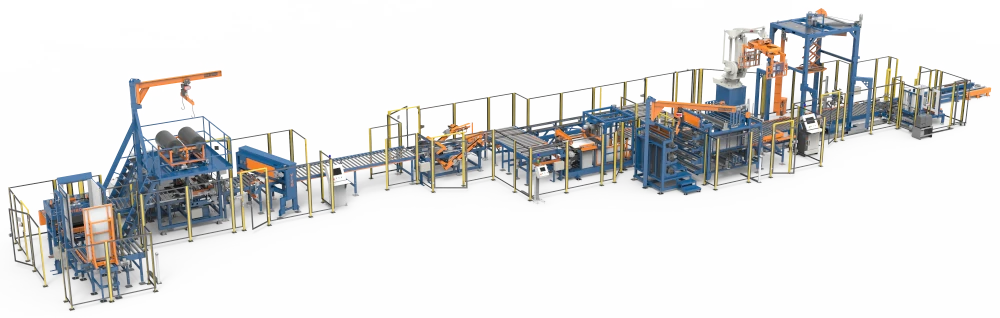

TYPICAL CONFIGURATION
- Loading conveyor for EPS stacks.
- Magazine and sheet de-stacking.
- Laminating Options:
A: Film without adhesive using hot-melt glue application.
B: Pre-coated laminating film activated by hot rollers. - Slitting-cutting station.
- Roll product winding station.
- Boards stacking and folding system.
- Transfer conveyor for rolls.
- Automatic packaging system.
- VIRO-BOT handling system.
- Atlantis pallet wrapper.
- Skid application unit.
PRODUCTS SPECIFICATION
- Hot-melt glue application
- Hot roller laminating system
- Roll length: Depending on factory layout
- Standard boards:
Up to 2.500 mm
2 x 1.000 mm - Production speed:
Up to 15 m/min for hot-melt system
Up to 30 m/min for pre-coated film
SPECIALIZED COMPONENTS
- Hot Melt Laminator: system for adhesive application and film bonding.
- Hot roller laminating system
- Winding Station

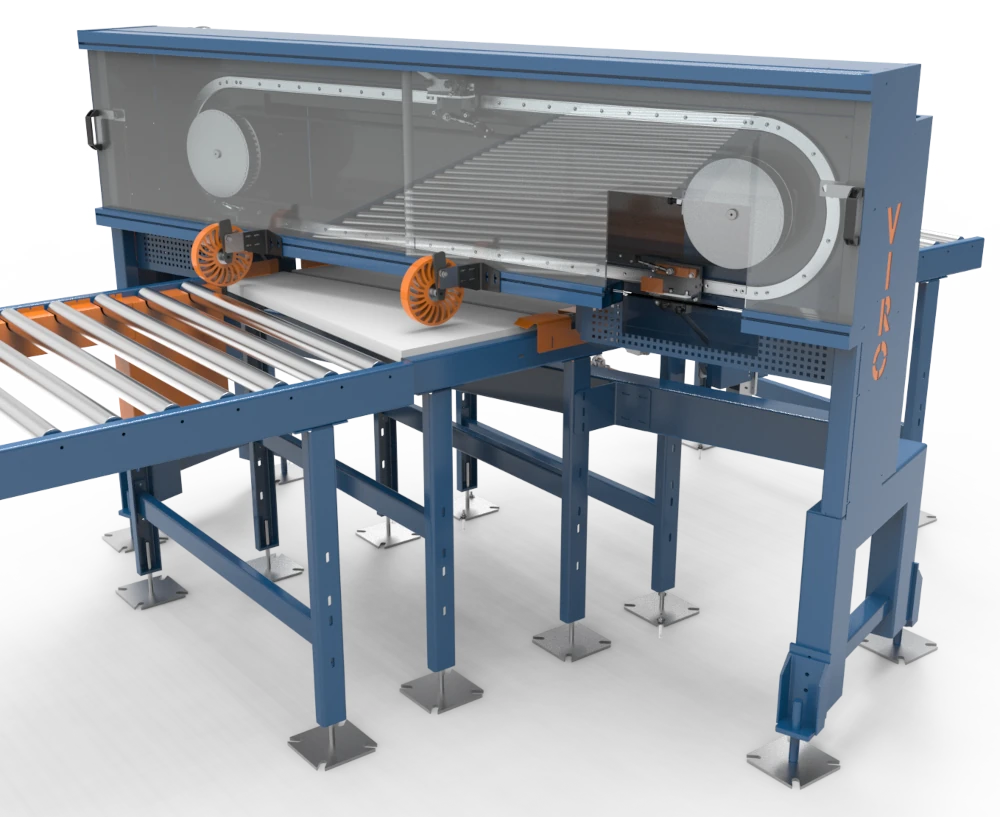

- Slitting-Cutting Station

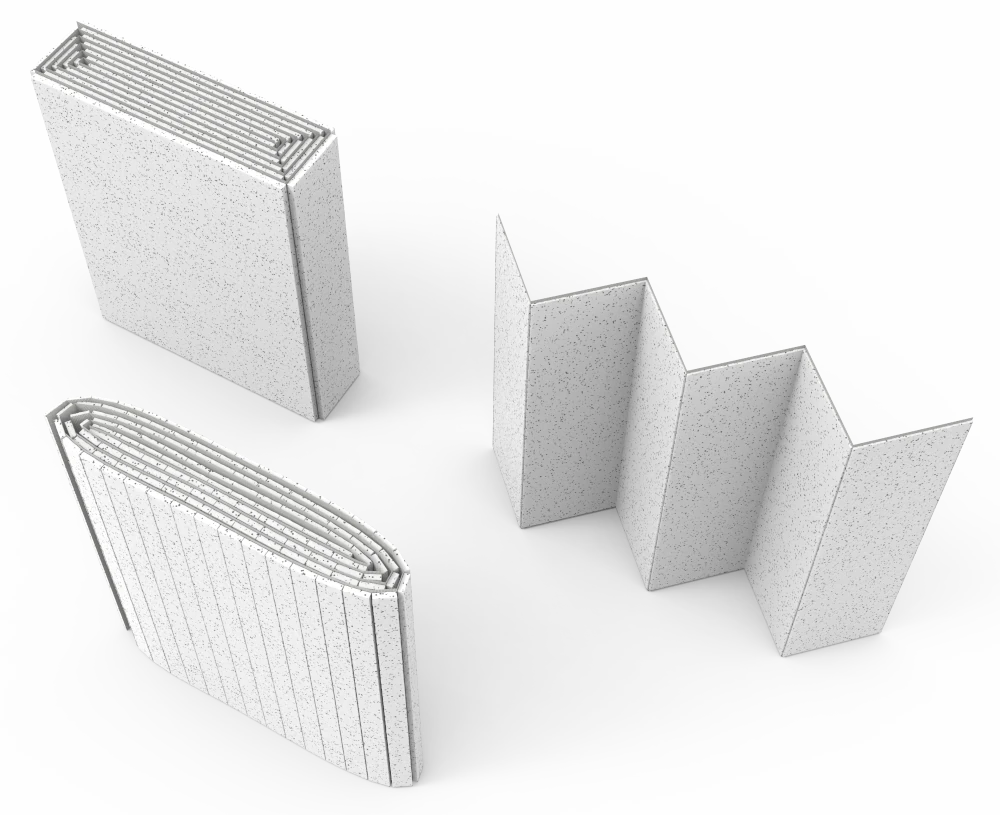

PRODUCTS
- EPS Winding Roll/Square
- EPS Fan Fold
- Tackerplatte
