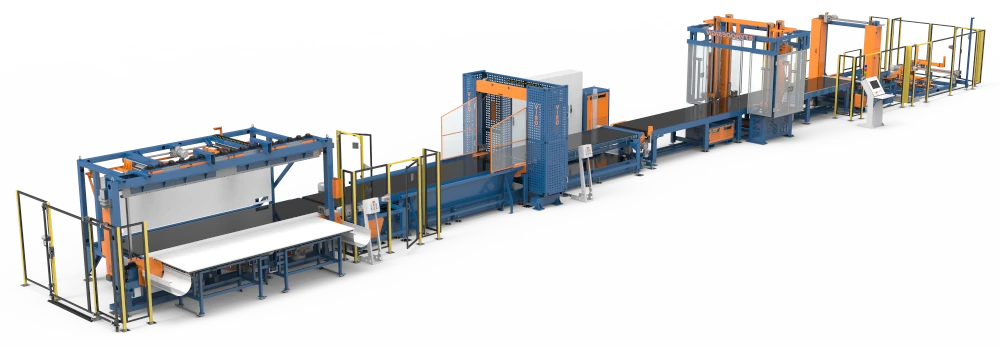

CONTOUR CUTTING LINE
COMPONENTS
- Block magazine with motorized tilter.

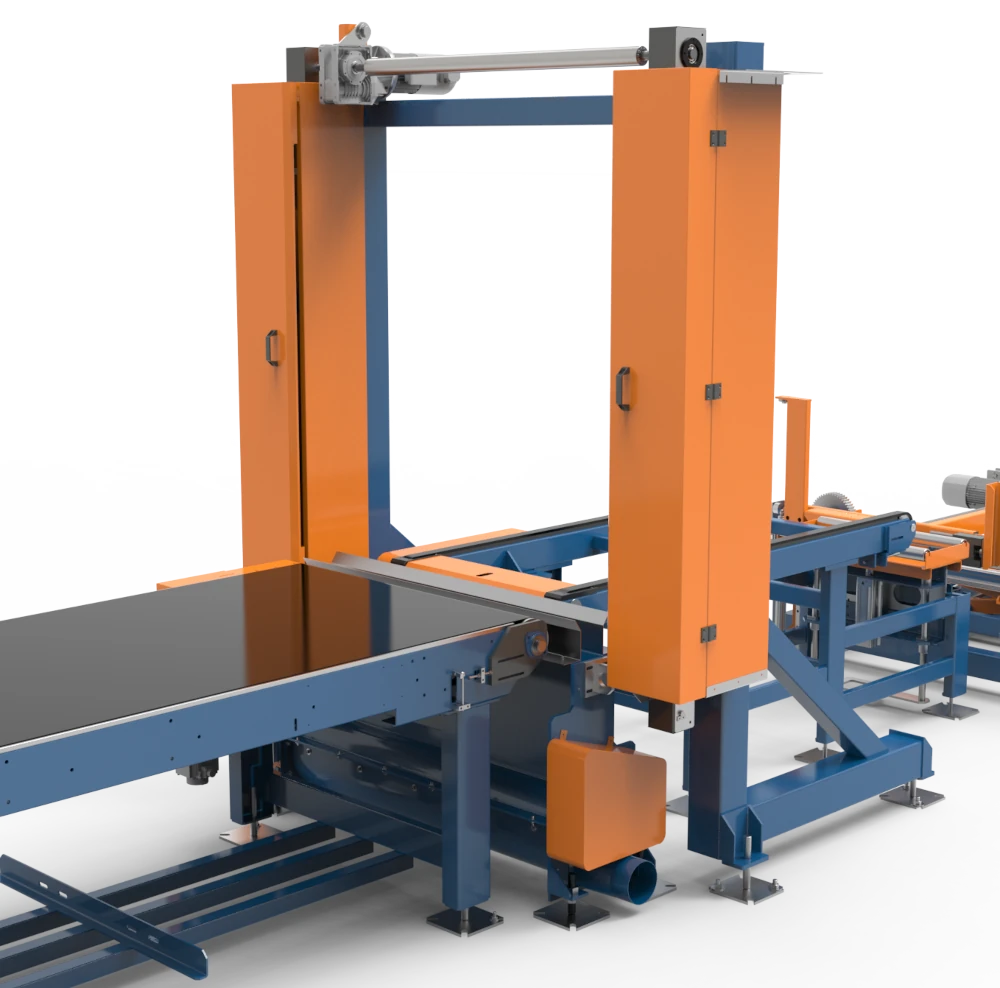

- Guillotine “G”, bundle length and height cutting station.

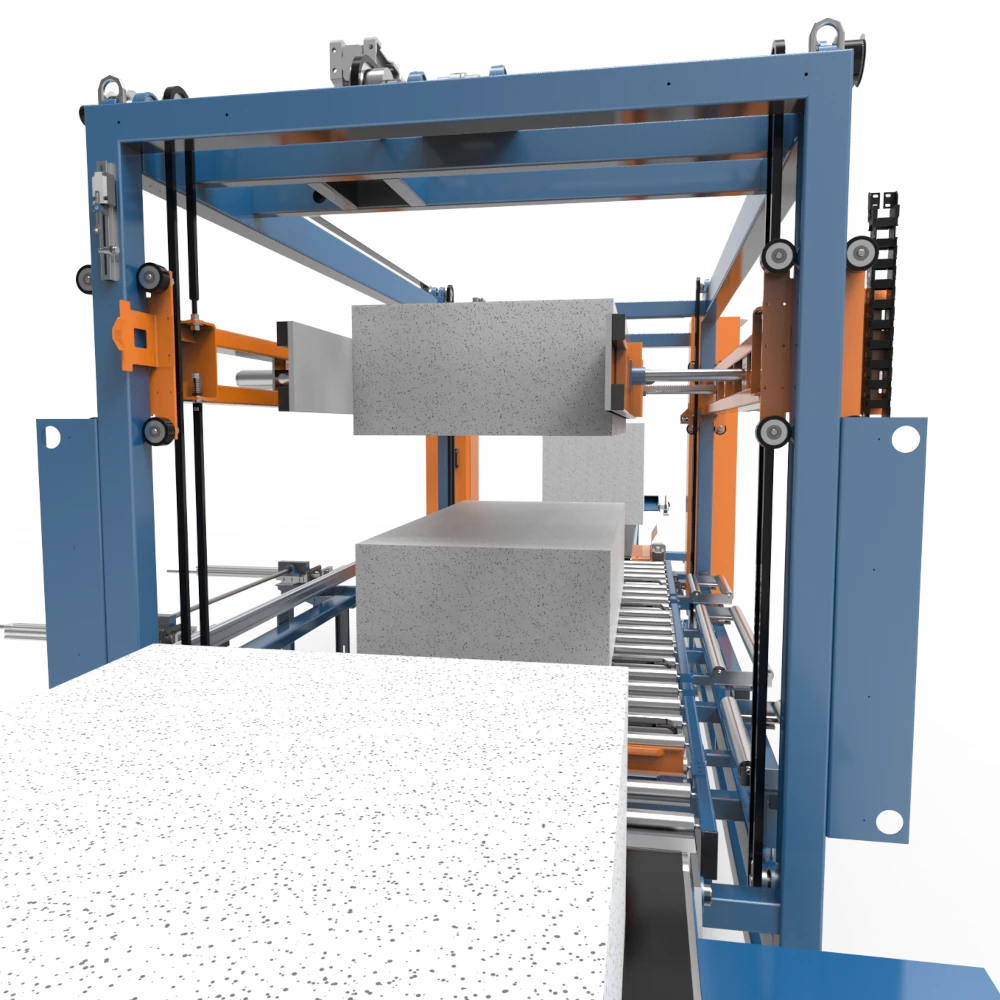

- Block splitter.

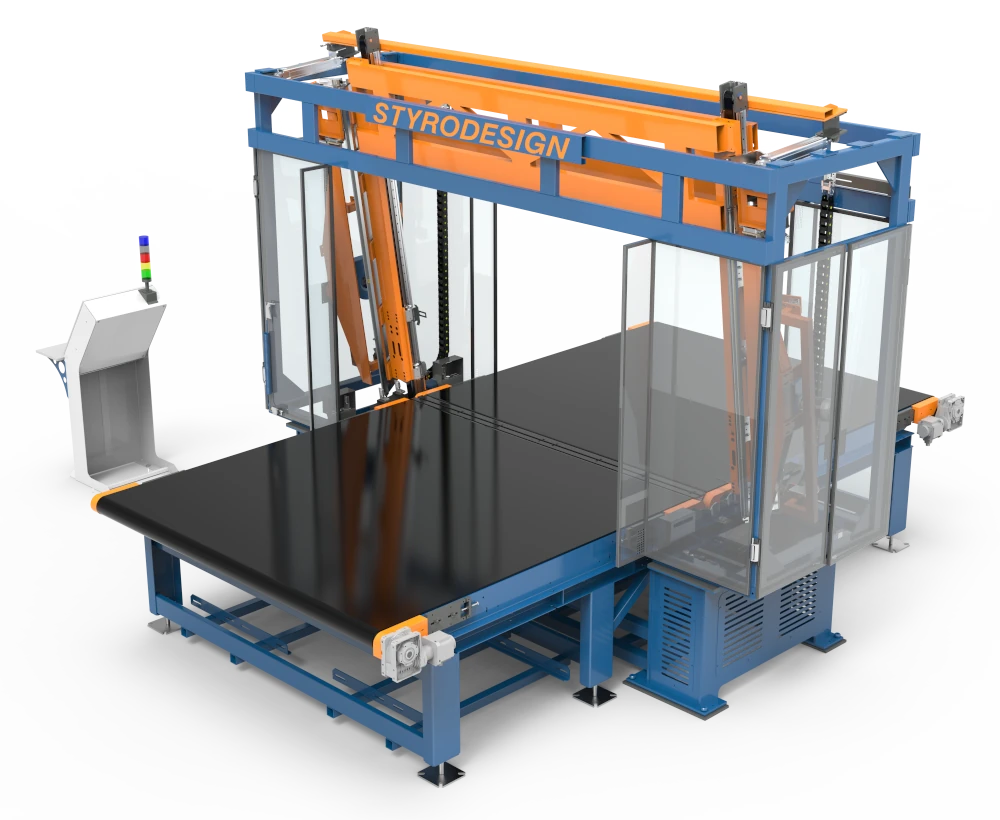

- StyroDesign “H”, with 41 horizontal wires for contour cutting and a stationary wire frame, with 41 stationary temperature-controlled wires.
- Bottom and top scrap removal unit.
- Trimming station “V” with 21 vertical cutting wires.
- Fast forward conveyor.

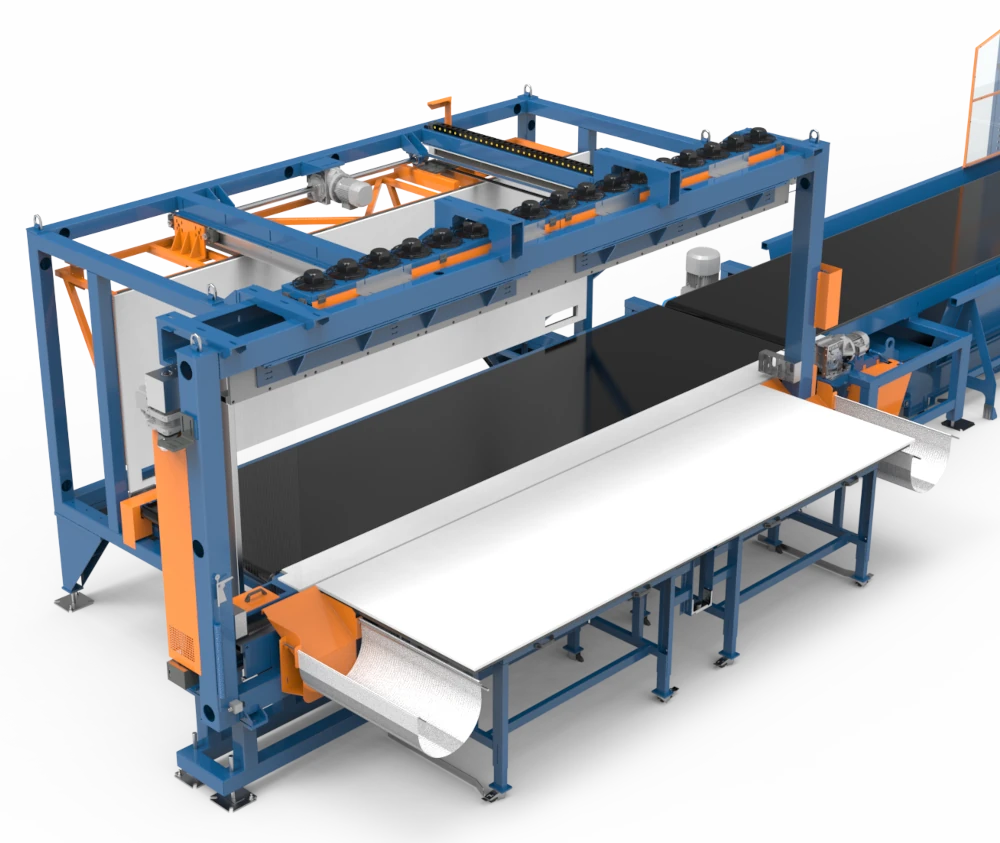

- Cross cutting station “X” with 41 vertical cutting wires.
HIGHLIGHTS
- HMI with touchscreen interface.
- Cooling of exposed wires.
- Automatic wire setting.
- Wire break detection and control.
CUTTING SPEEDS:
| EPS Density | Cutting Speed |
| 10 kg/m³ | 2,0 m/min |
| 15 kg/m³ | 1,6 m/min |
| 20 kg/m³ | 1,2 m/min |
| 25 kg/m³ | 0,8 m/min |
| 30 kg/m³ | 0,5 m/min |
CONFIGURATIONS

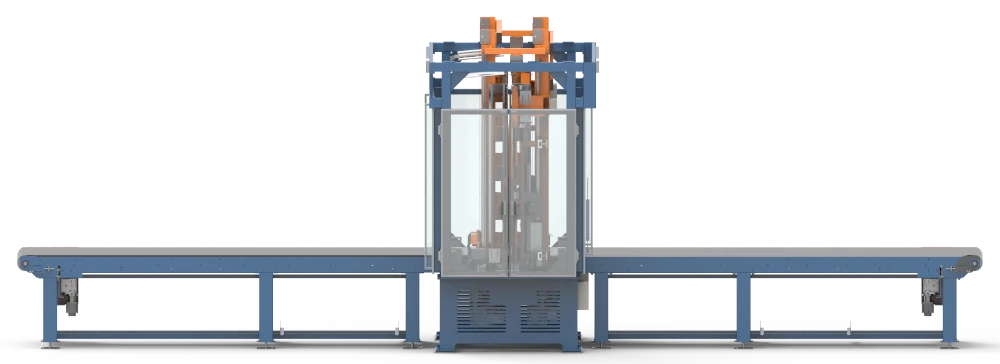

BASIC
Includes H-frame, our horizontal cutting frame StyroDesign, with independent axis control and automatic scrap removal system.

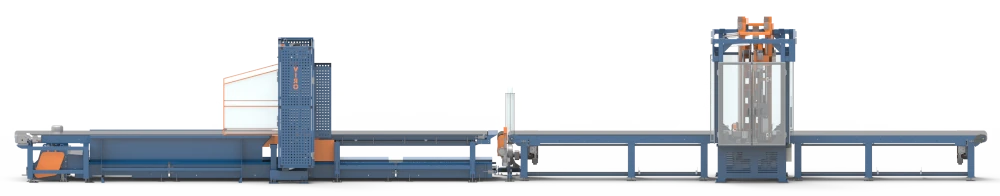

HV
HV configuration includes H-frame, our horizontal cutting frame StyroDesign and vertical trimming station V with 21 vertical wires.

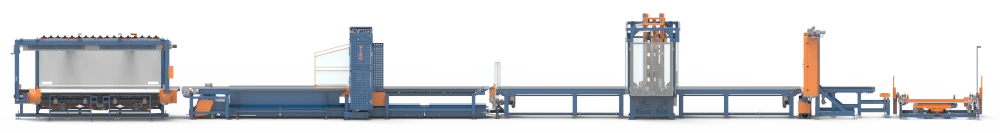

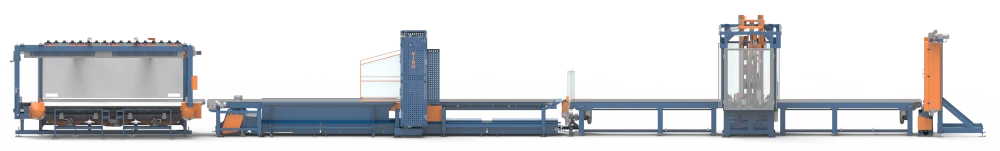

GHVX
GHVX configuration includes guillotine “G”, “H”, our horizontal cutting frame StyroDesign, vertical trimming station “V” with 21 vertical wires and cross cutting station “X”.
GHVX+
GHVX+ configuration includes the same components as GHVX, guillotine “G”, “H”, vertical trimming station “V” and cross cutting station “X” with added block magazine motorized tilter.
STYRODESIGN XL
With its modular design, the StyroDesign XL is designed for cutting widths of 1.300 / 2.600 / 3.100 mm.
OPTIONS

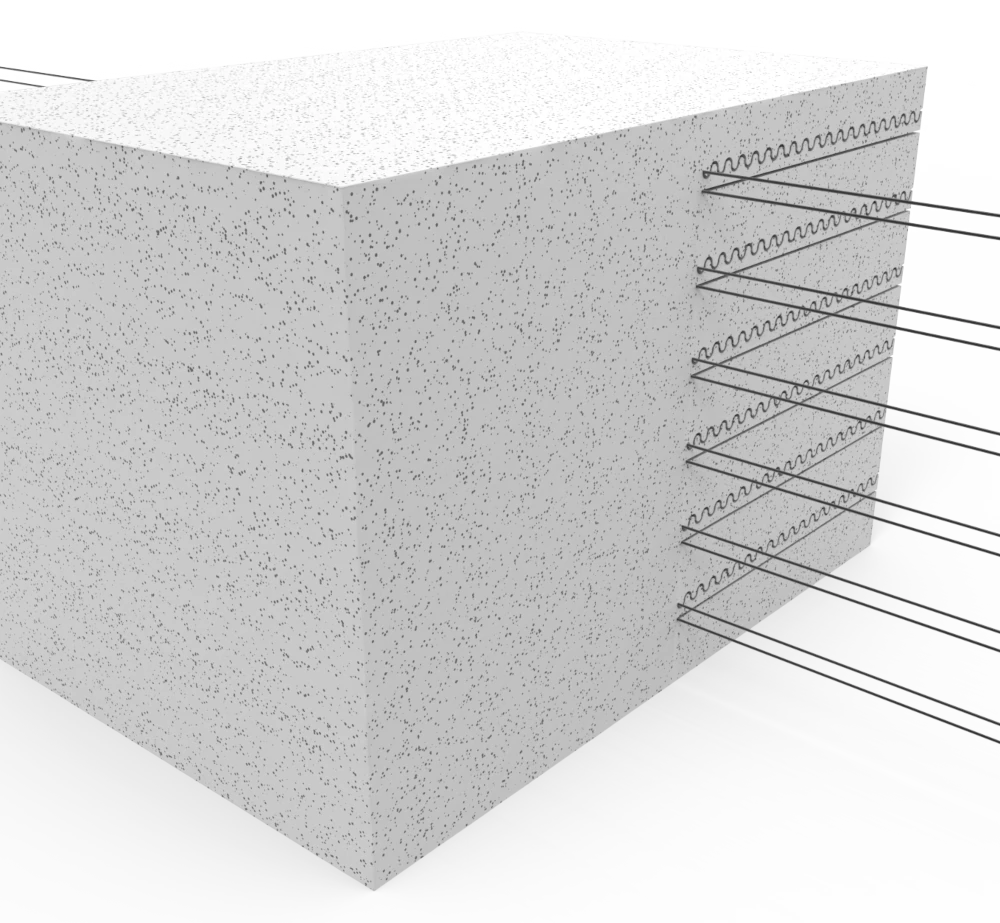

- Stationary Wire Frame S: Provides additional stationary cutting capability and increased flexibility for sheet production.
- Independent Axis Control.
- Automatic Scrap Removal.
