EDGE TRIMMING

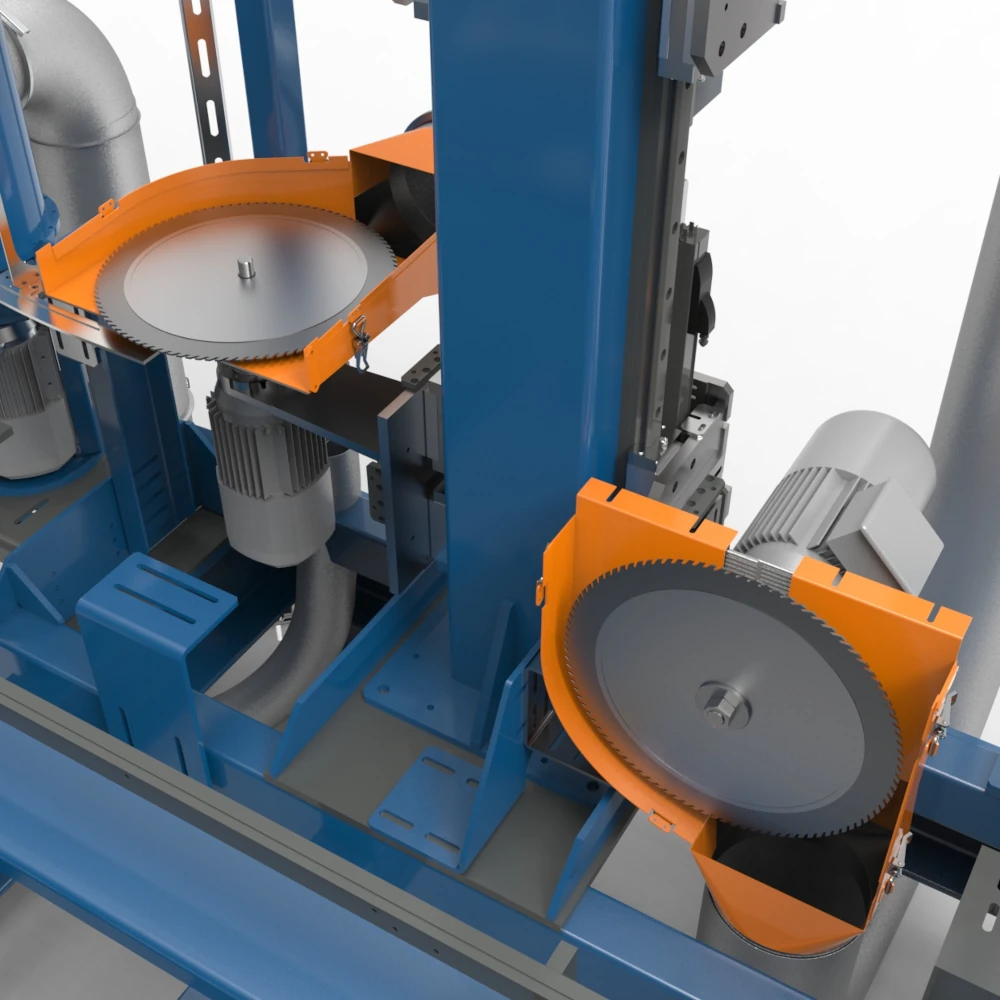

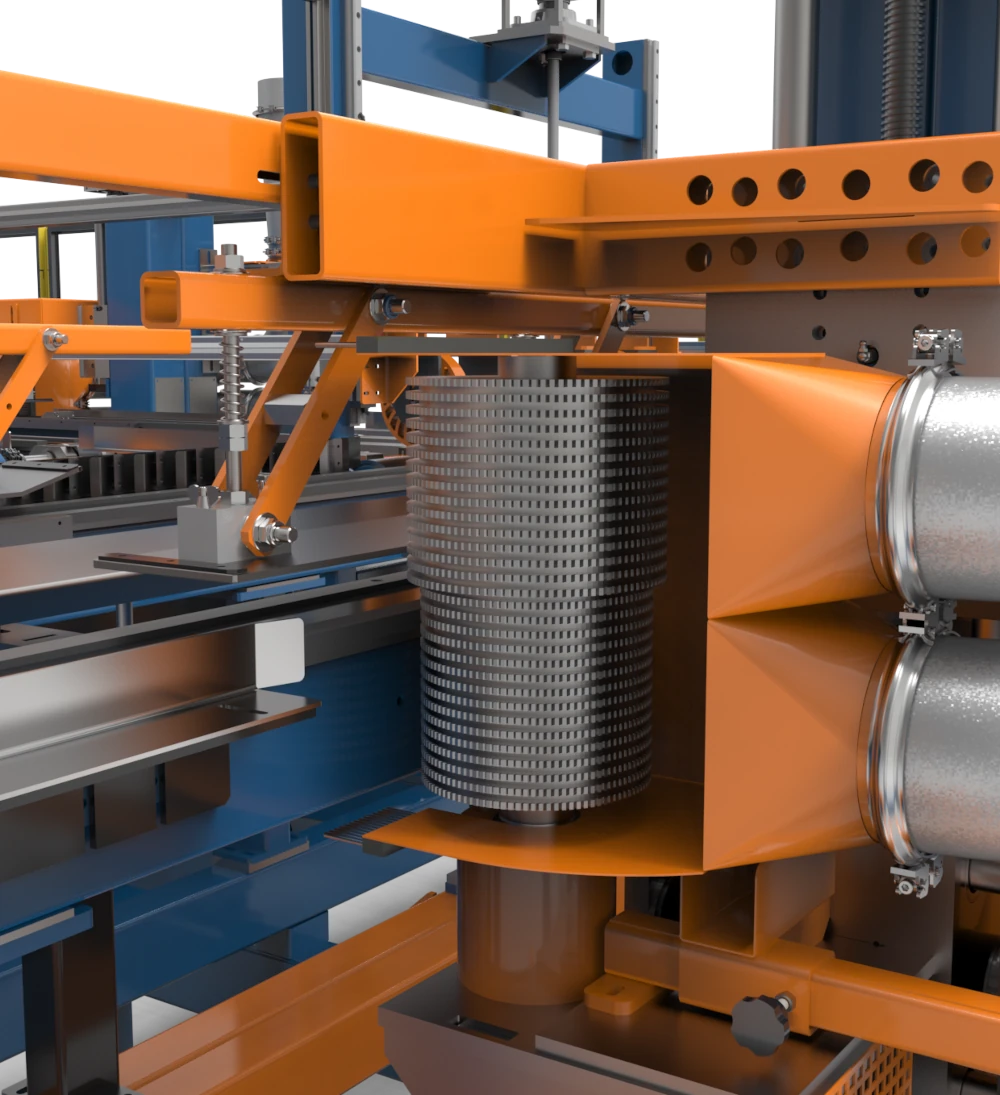

The automatic edge trimming system is designed for precise shiplap cutting on all four sides of EPS boards. The system ensures smooth, clean, and highly accurate trimming results, making it suitable for insulation board production lines.

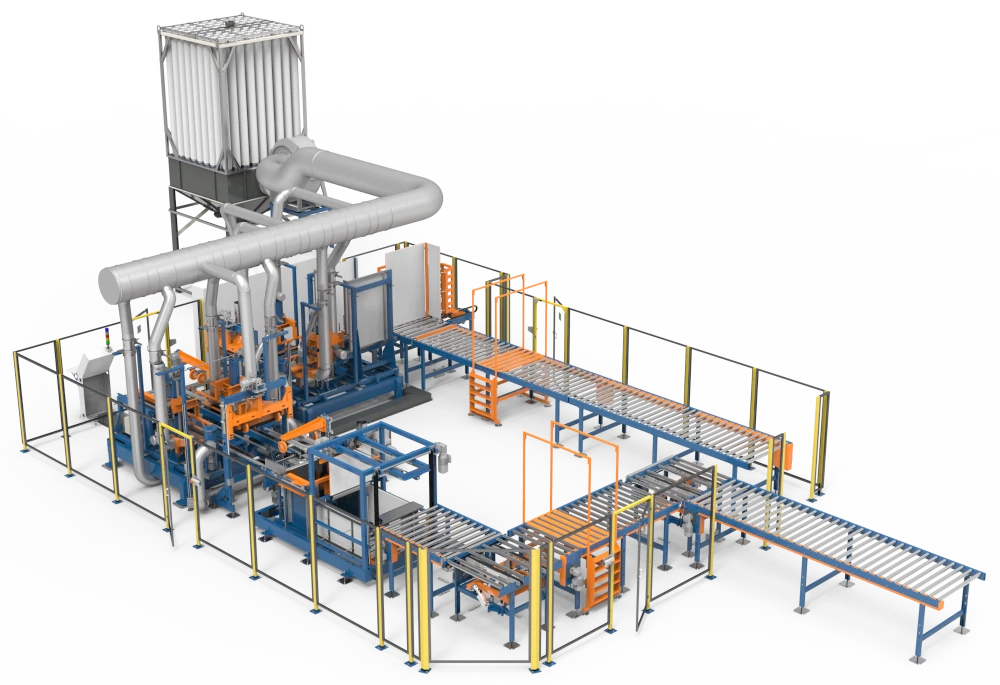

CONFIGURATION

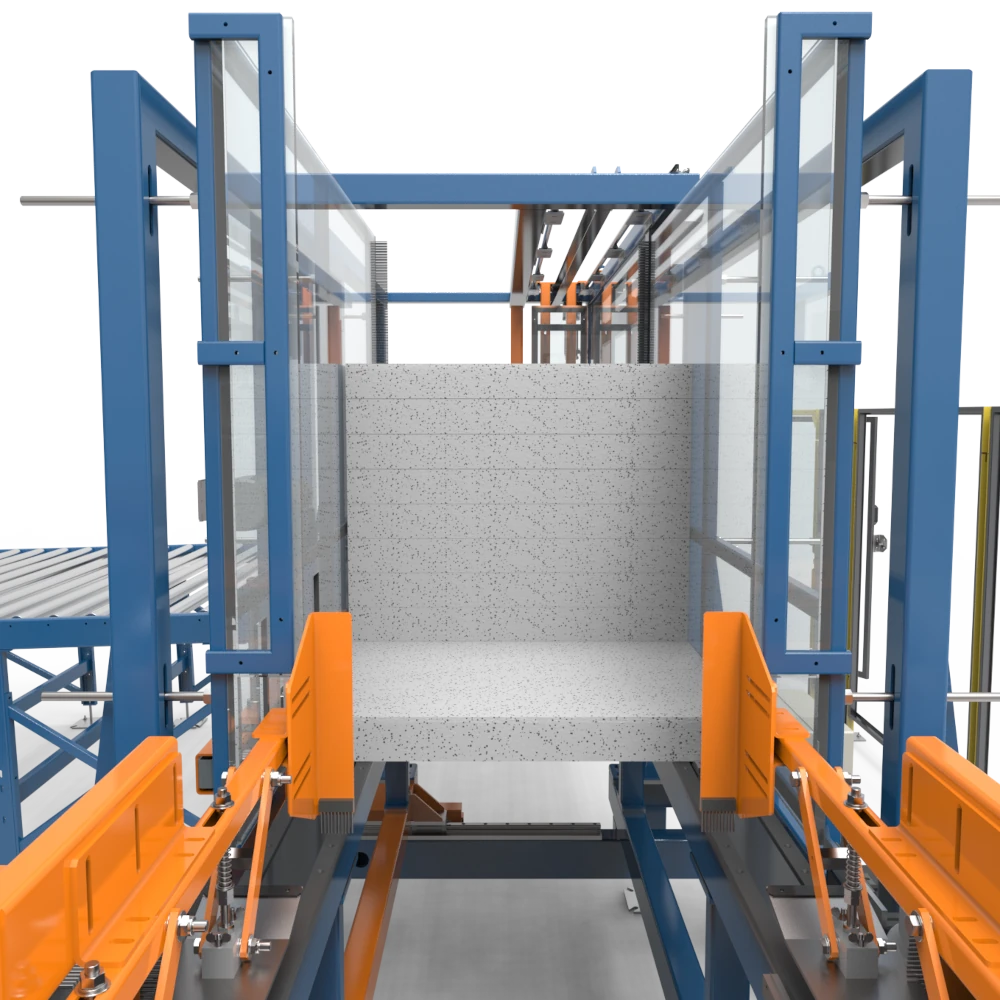

- Infeed conveyor with destacking station.
- Length trimming station.
- Width trimming station.

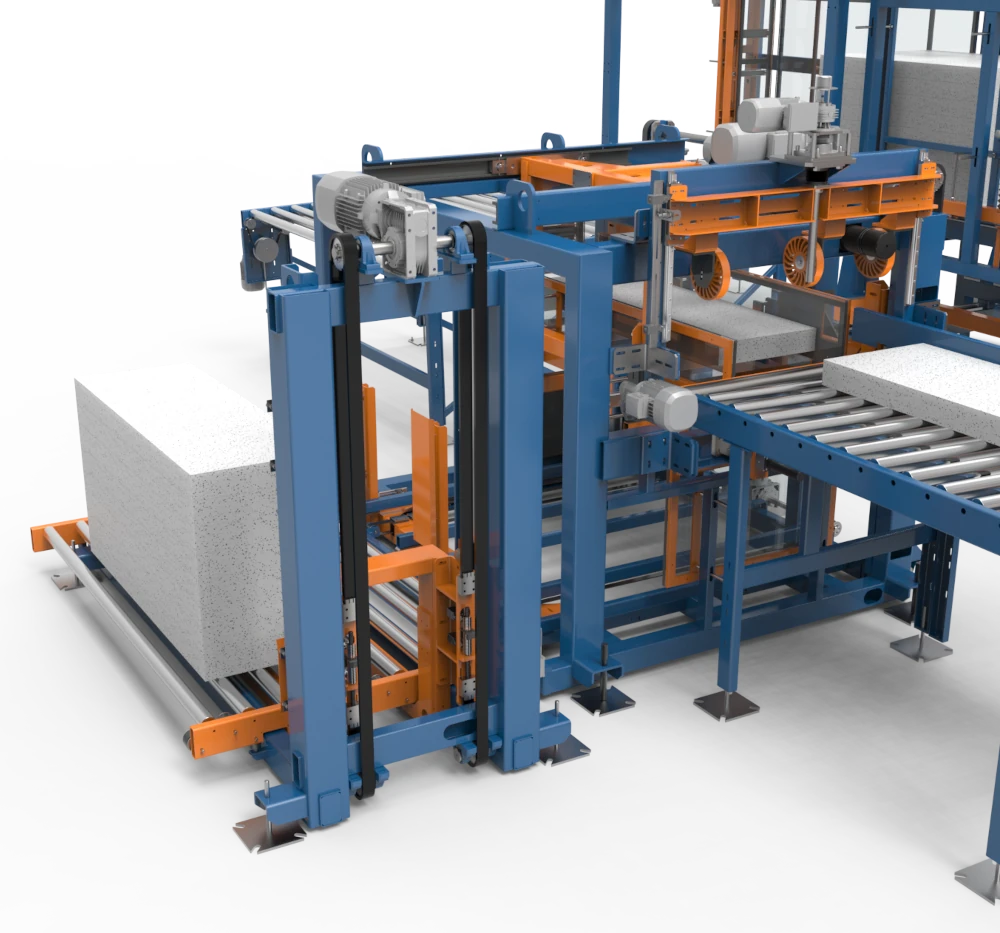

- Stacking and discharge station.
CAPACITY
- Up to 30 sheets/min (50 – 80 mm thickness).
- Up to 20 sheets/min (100 – 180 mm thickness).
- Up to 10 sheets/min (200 – 300 mm thickness).
Capacity is based on board dimensions of 500 × 1.000 mm.
SPECIFICATIONS
- Length: 1.000 / 1.200 / 2.000 / 2.500 mm.
- Width: 500 / 1.000 / 1.200 mm.
- Thickness: 50 – 400 mm.
- Maximum overlap: 10 / 15 / 20 mm.
OPTIONS
- Dust extraction system.
- Dust silo (ATEX rated).
