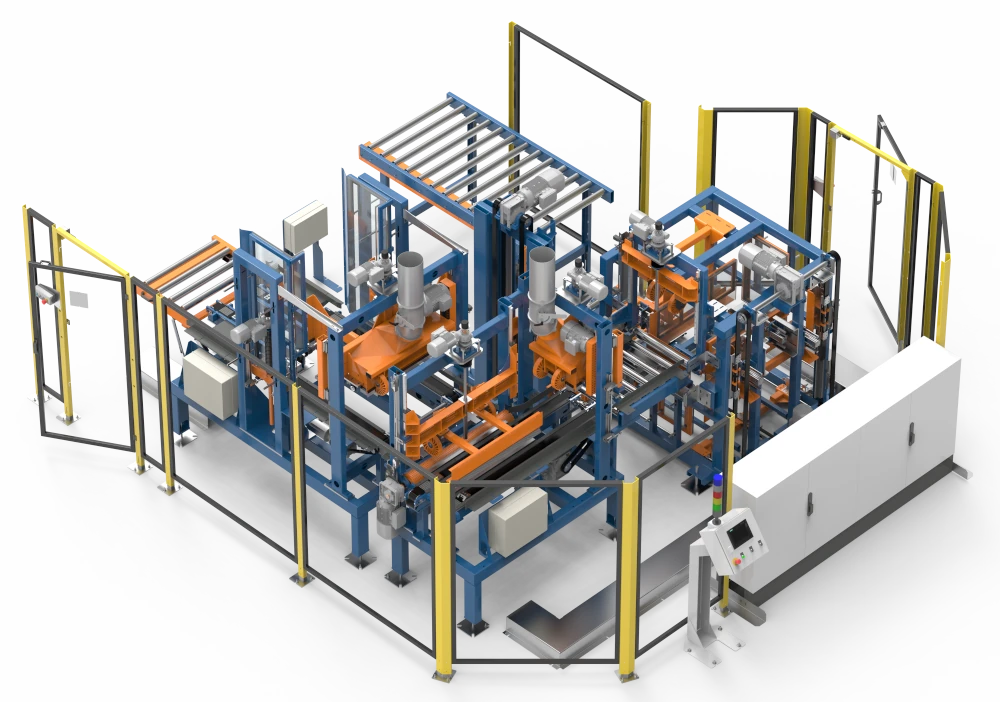

BOARDS GROOVING STATION
Automatic board grooving system with rotating slitting blades specifically designed for processing insulation boards. It ensures precise grooving for improved material performance and application.
TYPICAL CONIGURATION
- Destacking station for separating EPS sheet stacks into individual sheets.
- Alignment and cross-cut slitting unit equipped with multiple saw blades.
- Transport and lengthwise slitting module with multiple saw blades for directional grooving.
- Automatic stacking unit for forming finished EPS bundles to the required height.
OPTIONS
- Dust extraction system for maintaining a clean production environment.
- ATEX rated dust silo.
SPECIALIZED COMPONENTS

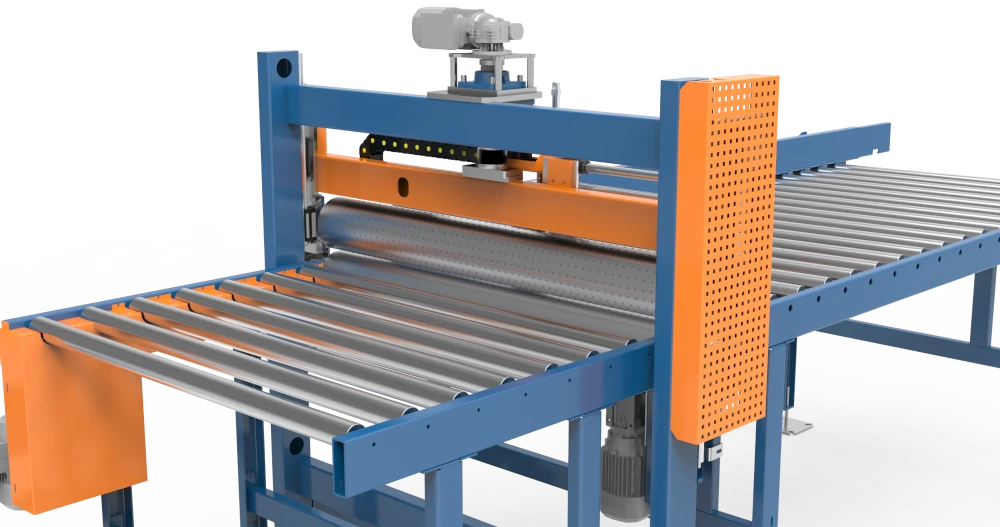

- Dimple Roller: For surface texturing and specialized board finishing.
- Groover Station: High-precision rotating blade assembly for consistent groove depth and spacing.
PRODUCTS

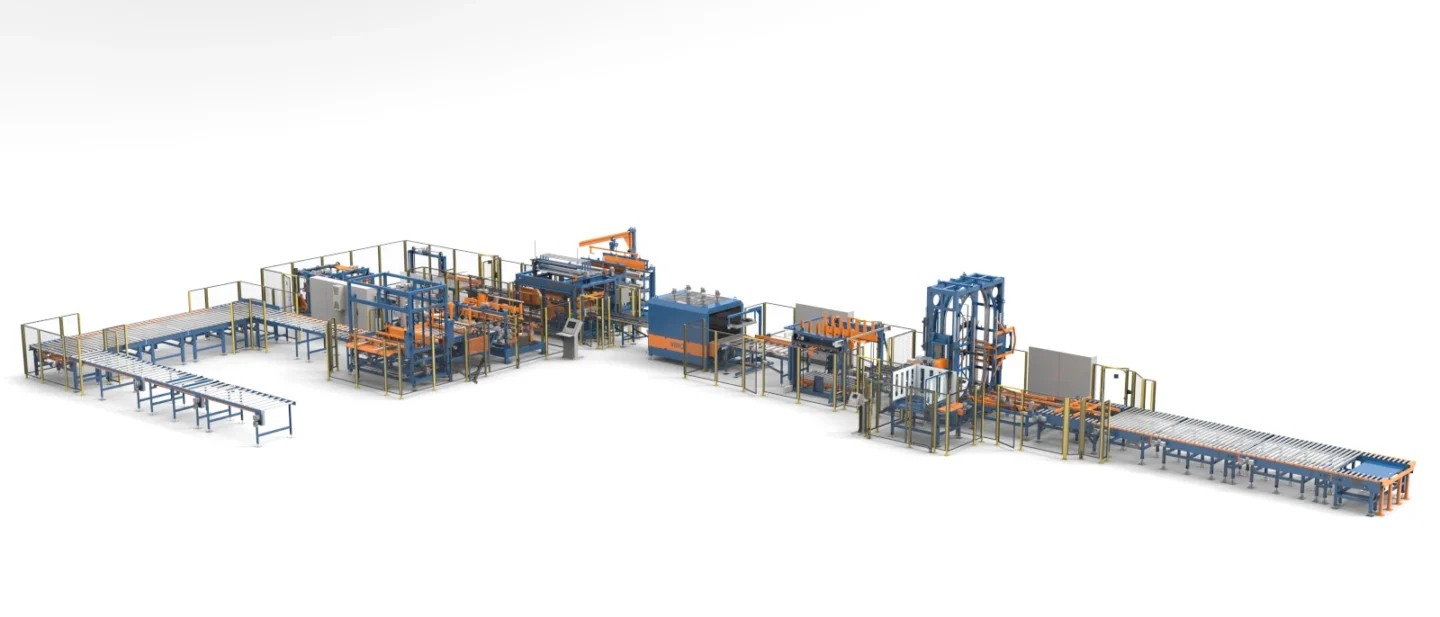

AUTOMATIC TONGUE AND GROOVE CUTTING LINE
The T&G cutting and stacking system capacity shall be a minimum of 25 sheets per 90 seconds for board dimensions of 25 mm x 1220 mm x 2440 mm.
TYPICAL CONIGURATION
- Loading conveyor for EPS Stacks
- Magazine for sheets with automatic board dispenser
- Back groover, automatic adjustable to run with or without grooves
- Tongue and Groove cutting station, automatic trimming of EPS sheets to obtain tongue & groove on 2 sides
- Dimpler roller for marking of board TOP surface
- Boards stacker
OPTIONS
- Ink-jet printer
- Automatic board stacker and stack lifting system
- Dust Extraction System
- Dust Silo
- Dust Compactor
- Automatic packaging, bundle stacking and wrapping, skid aplication systems
