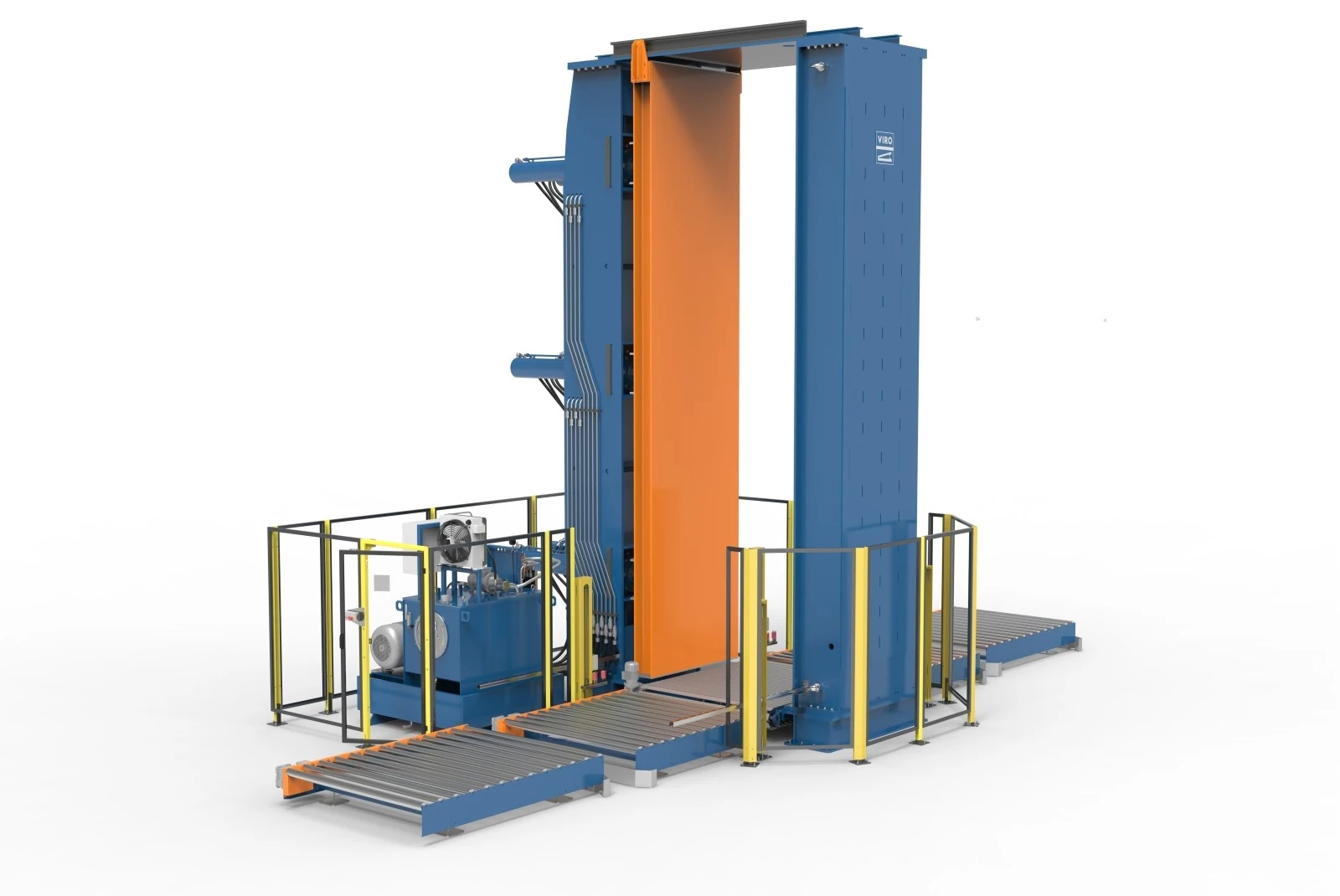

BLOCK PRESS
Vertical orientation for compression or elastification of EPS blocks that comply with DES SM and DES SG according to DIN 4108-10 and EN 13163.
FOOTFALL SOUND INSULATION
- Pressing stroke: 0 – 70%
- Pressure: Up to 65 tons/m² (depending on EPS density)
- Capacity: 12 – 20 blocks/hour
ELASTIFICATION
- Pressing stroke: 0 – 10%
- Pressure: Up to 20 tons/m² (depending on EPS density)
- Capacity: 22 – 30 blocks/hour
TECHNICAL SPECIFICATIONS
- Variable pressing and releasing speed.
- Adjustable pressing time.
- Maximum stroke up to 70% of the EPS block height.
- Multiple press cycles.
- Process data stored as recipes.
